第三章：Spring IoC 容器概览

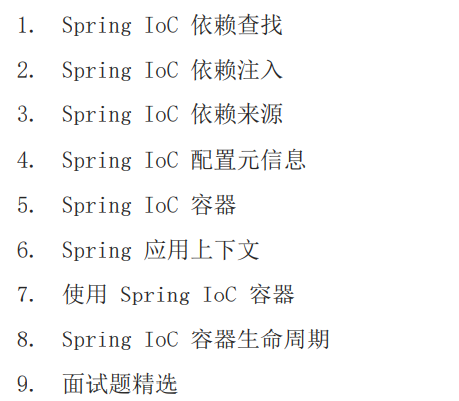

image-20220302124843613

1. Spring IoC 依赖查找

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
        https://www.springframework.org/schema/beans/spring-beans.xsd">

    <bean id="user" class="com.cruise.thinking.in.spring.ioc.container.overview.domain.User">
        <property name="id" value="1"></property>
        <property name="name" value="Cruise"></property>
    </bean>

    <!-- 使用 ObjectFactory 的实现 TargetBeanObjectFactory 实现延迟加载 -->
    <!-- TargetBeanObjectFactory 是 ObjectFactoryCreatingFactoryBean的 内部类-->
    <bean id="objectFactory" class="org.springframework.beans.factory.config.ObjectFactoryCreatingFactoryBean">
        <!-- 配置关联的 beanName -->
        <property name="targetBeanName" value="user"></property>
    </bean>

    <!-- 使用 parent 继承 user的属性 -->
    <bean id="superUser" class="com.cruise.thinking.in.spring.ioc.container.overview.domain.SuperUser"
          parent="user" primary="true">
        <property name="address" value="Beijing"></property>
    </bean>
</beans>
1
2
3
4
// 配置 XML 配置文件
       // 启动 Spring 应用上下文
       BeanFactory beanFactory = new ClassPathXmlApplicationContext("classpath:/META-INF/dependency-lookup-context.xml");

根据 Bean 名称查找

实时查找

1
2
3
4
private static void lookupInRealTime(BeanFactory beanFactory) {
     User user = (User) beanFactory.getBean("user");
     System.out.println("实时查找：" + user);
 }

延迟查找

1
2
3
<bean id="objectFactory" class="org.springframework.beans.factory.config.ObjectFactoryCreatingFactoryBean">
      <property name="targetBeanName" value="user"/>
  </bean>
1
2
3
4
5
private static void lookupInLazy(BeanFactory beanFactory) {
      ObjectFactory<User> objectFactory = (ObjectFactory<User>) beanFactory.getBean("objectFactory");
      User user = objectFactory.getObject();
      System.out.println("延迟查找：" + user);
  }

根据 Bean 类型查找

单个 Bean 对象

1
2
3
4
private static void lookupByType(BeanFactory beanFactory) {
       User user = beanFactory.getBean(User.class);
       System.out.println("实时查找：" + user);
   }

集合 Bean 对象

1
2
3
4
5
6
7
private static void lookupCollectionByType(BeanFactory beanFactory) {
       if (beanFactory instanceof ListableBeanFactory) {
           ListableBeanFactory listableBeanFactory = (ListableBeanFactory) beanFactory;
           Map<String, User> users = listableBeanFactory.getBeansOfType(User.class);
           System.out.println("查找到的所有的 User 集合对象：" + users);
       }
   }

根据 Bean 名称 + 类型查找

1
2
3
4
public static void lookupByNameAndType(BeanFactory beanFactory) {
     User supperUser = beanFactory.getBean("superUser", User.class);
     System.out.println("按照名称和类型查找：" + supperUser);
 }

根据 Java 注解查找

1
2
3
4
@Target(ElementType.TYPE)
@Retention(RetentionPolicy.RUNTIME)
public @interface Super {
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
@Super
public class SuperUser extends User {

    private String address;

    public String getAddress() {
        return address;
    }

    public void setAddress(String address) {
        this.address = address;
    }

    @Override
    public String toString() {
        return "SuperUser{" +
                "address='" + address + '\'' +
                "} " + super.toString();
    }
}

单个 Bean 对象

集合 Bean 对象

1
2
3
4
5
6
7
private static void lookupByAnnotationType(BeanFactory beanFactory) {
     if (beanFactory instanceof ListableBeanFactory) {
         ListableBeanFactory listableBeanFactory = (ListableBeanFactory) beanFactory;
         Map<String, User> users = (Map) listableBeanFactory.getBeansWithAnnotation(Super.class);
         System.out.println("查找标注 @Super 所有的 User 集合对象：" + users);
     }
 }

2. Spring IoC 依赖注入

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:util="http://www.springframework.org/schema/util"
       xsi:schemaLocation="
        http://www.springframework.org/schema/beans
        https://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/util
        https://www.springframework.org/schema/util/spring-util.xsd">

    <!-- 导入 -->
    <import resource="dependency-lookup-context.xml"/>

    <!-- 根据名称注入 -->
    <bean id="userRepositoryByName"
          class="com.cruise.thinking.in.spring.ioc.container.overview.repository.UserRepositoryByName"
          autowire="byName"/>

    <!-- 根据类型注入 -->
    <bean id="userRepositoryByType"
          class="com.cruise.thinking.in.spring.ioc.container.overview.repository.UserRepositoryByType"
          autowire="byType">
        <!--<property name="users">
            <util:list>
                <ref bean="user"/>
                <ref bean="superUser"/>
            </util:list>
        </property>-->
    </bean>

    <!-- 注入容器内建Bean 不指定 autowire="byType" 就无法注入-->
    <bean id="repositoryByInnerBean"
          class="com.cruise.thinking.in.spring.ioc.container.overview.repository.RepositoryByInnerBean"
          autowire="byType"/>

    <!-- 设置为原型bean -->
    <bean id="student" class="com.cruise.thinking.in.spring.ioc.container.overview.domain.Student" scope="prototype"/>
    <!-- 延迟注入 -->
    <bean id="repositoryLazy"
          class="com.cruise.thinking.in.spring.ioc.container.overview.repository.RepositoryLazy"
          autowire="byType"/>

    <!-- 注入BeanFactory -->
    <bean id="repositoryForBeanFactory"
          class="com.cruise.thinking.in.spring.ioc.container.overview.repository.RepositoryForBeanFactory"
          autowire="byType"/>
</beans>
1
2
BeanFactory beanFactory =
                new ClassPathXmlApplicationContext("classpath:/META-INF/dependency-injection-context.xml");

根据 Bean 名称注入

用户仓库，演示通过名称注入属性user和superUser

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
public class UserRepositoryByName {
    /**注入User类型中beanName是user的Bean*/
    private User user;
    /**注入User类型中beanName是superUser的Bean*/
    private User superUser;

    public User getUser() {
        return user;
    }

    public void setUser(User user) {
        this.user = user;
    }

    public User getSuperUser() {
        return superUser;
    }

    public void setSuperUser(User superUser) {
        this.superUser = superUser;
    }

    @Override
    public String toString() {
        return "UserRepositoryByName{" +
                "user=" + user +
                ", superUser=" + superUser +
                '}';
    }
}

dependency-injection-context.xml

autowire = “byName”

1
2
3
4
<!-- 根据名称注入 -->
 <bean id="userRepositoryByName"
       class="com.kesen.thinking.in.spring.ioc.container.overview.repository.UserRepositoryByName"
       autowire="byName"/>

dependency-lookup-context.xml

1
2
3
4
5
6
7
8
9
10
<bean id="user" class="com.kesen.thinking.in.spring.ioc.container.overview.domain.User">
      <property name="id" value="1"></property>
      <property name="name" value="kesen"></property>
  </bean>

  <!-- 使用 parent 继承 user的属性 -->
  <bean id="superUser" class="com.kesen.thinking.in.spring.ioc.container.overview.domain.SuperUser"
        parent="user" primary="true">
      <property name="address" value="Chengdu"></property>
  </bean>
1
2
3
4
5
6
private static void injectionByName(BeanFactory beanFactory) {
        UserRepositoryByName repository = beanFactory.getBean(UserRepositoryByName.class);
        System.out.println("根据名称注入Bean：" + repository);
    }

// 根据名称注入Bean：UserRepositoryByName{user=User{id=1, name='kesen'}, superUser=superUser{address='Chengdu'} User{id=1, name='kesen'}}

根据 Bean 类型注入

User类型 是集合

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
public class UserRepositoryByType {
    /**注入所有User类型的Bean*/
    private List<User> users;
    /**应该注入的是SuperUser类型的Bean*/
    private SuperUser superUser;

    public List<User> getUsers() {
        return users;
    }

    public void setUsers(List<User> users) {
        this.users = users;
    }

    public SuperUser getSuperUser() {
        return superUser;
    }

    public void setSuperUser(SuperUser superUser) {
        this.superUser = superUser;
    }

    @Override
    public String toString() {
        return "UserRepositoryByType{" +
                "users=" + users +
                ", superUser=" + superUser +
                '}';
    }
}

autowire = “byType”

1
2
3
4
5
6
7
8
9
10
11
<!-- 根据类型注入 -->
<bean id="userRepositoryByType"
      class="com.kesen.thinking.in.spring.ioc.container.overview.repository.UserRepositoryByType"
      autowire="byType">
    <!--<property name="users">
        <util:list>
            <ref bean="user"/>
            <ref bean="superUser"/>
        </util:list>
    </property>-->
</bean>

单个 Bean 对象

1
2
3
4
private static void injectionByType(BeanFactory beanFactory) {
      UserRepositoryByType repository = beanFactory.getBean(UserRepositoryByType.class);
      System.out.println("根据类型注入单个Bean：" + repository.getSuperUser());
  }

根据类型注入单个Bean：superUser{address=’Chengdu’} User{id=1, name=’kesen’}

集合 Bean 对象

1
2
3
4
5
private static void injectionByType(BeanFactory beanFactory) {
      UserRepositoryByType repository = beanFactory.getBean(UserRepositoryByType.class);
      System.out.println("根据类型注入单个Bean：" + repository.getSuperUser());
      System.out.println("根据类型注入集合Bean：" + repository.getUsers());
  }

根据类型注入单个Bean：superUser{address=’Chengdu’} User{id=1, name=’kesen’}
根据类型注入集合Bean：[User{id=1, name=’kesen’}, superUser{address=’Chengdu’} User{id=1, name=’kesen’}]

注入容器內建 Bean 对象

1
2
3
4
5
6
7
8
9
10
11
12
public class RepositoryByInnerBean {

    private Environment environment;

    public Environment getEnvironment() {
        return environment;
    }

    public void setEnvironment(Environment environment) {
        this.environment = environment;
    }
}
1
2
3
4
<!-- 注入容器内建Bean 不指定 autowire="byType" 就无法注入-->
<bean id="repositoryByInnerBean"
      class="com.kesen.thinking.in.spring.ioc.container.overview.repository.RepositoryByInnerBean"
      autowire="byType"/>
1
2
3
4
5
6
7
8
9
/**
 * {@link Environment}并不是我们自定义的业务Bean 如果能够注入说明是容器内建的Bean
 *
 * @param beanFactory
 */
private static void injectionByInnerBean(BeanFactory beanFactory) {
    RepositoryByInnerBean repository = beanFactory.getBean(RepositoryByInnerBean.class);
    System.out.println("注入容器内建Bean：" + repository.getEnvironment());
}

注入非 Bean 对象

1
2
3
4
5
6
7
8
9
private static void injectionByNonBean(BeanFactory beanFactory) {
    try {
        BeanFactory factoryBean = beanFactory.getBean(BeanFactory.class);
        // 报错了 无法获取 说明BeanFactory不是一个Bean对象而是一个容器内建依赖
        System.out.println("注入非Bean对象：" + factoryBean);
    } catch (NoSuchBeanDefinitionException e) {
        e.printStackTrace();
    }
}

注入类型

实时注入

延迟注入

1
2
3
4
5
6
7
8
9
10
11
12
public class RepositoryLazy {

    private ObjectFactory<Student> objectFactory;

    public ObjectFactory<Student> getObjectFactory() {
        return objectFactory;
    }

    public void setObjectFactory(ObjectFactory<Student> objectFactory) {
        this.objectFactory = objectFactory;
    }
}
1
2
3
4
5
6
<!-- 设置为原型bean -->
<bean id="student" class="com.kesen.thinking.in.spring.ioc.container.overview.domain.Student" scope="prototype"/>
<!-- 延迟注入 -->
<bean id="repositoryLazy"
      class="com.kesen.thinking.in.spring.ioc.container.overview.repository.RepositoryLazy"
      autowire="byType"/>
1
2
3
4
5
6
7
8
9
10
11
12
13
/**
   * 通过间接的方式注入，不直接注入依赖
   * <p>比如希望延迟依赖注入Student，可以通过依赖注入ObjectFactory<Student>来实现延迟注入Student</p>
   * 由于{@link Student}是一个原型Bean，而且是延迟依赖注入，所以在{@link ObjectFactory#getObject()}时才会注入{@link Student}
   *
   * @param beanFactory
   */
  private static void injectionLazy(BeanFactory beanFactory) {
      RepositoryLazy repositoryLazy = beanFactory.getBean(RepositoryLazy.class);
      ObjectFactory<Student> objectFactory = repositoryLazy.getObjectFactory();
      Student student = objectFactory.getObject();
      System.out.println("延迟注入：" + student);
  }

3. Spring IoC 依赖来源

bean与非bean

自定义Bean

容器内建Bean对象

Environment

容器内建依赖

BeanFactory

4. Spring IoC 配置元信息

id/class

4.1 Bean 定义配置

基于 XML 文件

标签

基于 Properties 文件

基于 Java 注解

@Value

基于 Java API（专题讨论）

BeanDifinition

4.2 IoC 容器配置

非核心的特性，

基于 XML 文件

基于 Java 注解

基于 Java API （专题讨论）

4.3 外部化属性配置

基于 Java 注解

5. Spring IoC 容器

BeanFactory

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
/**
  * {@link ApplicationContext}继承了 {@link BeanFactory},
  * {@link AbstractApplicationContext}实现了{@link ApplicationContext}
  * 在{@link AbstractApplicationContext}中还组合了一个{@link BeanFactory}的实现{@link DefaultListableBeanFactory}
  * {@link ApplicationContext}中对Bean的管理还是通过的{@link BeanFactory}的实现,类似于代理模式
  * {@link ApplicationContext}含有{@link BeanFactory}的所有特性
  */
 public static void whoIsIoC() {
     ApplicationContext applicationContext =
             new ClassPathXmlApplicationContext("classpath:/META-INF/dependency-injection-context.xml");
     RepositoryForBeanFactory repository = applicationContext.getBean(RepositoryForBeanFactory.class);
     BeanFactory beanFactory = repository.getBeanFactory();
     System.out.println(beanFactory == applicationContext);//false
     System.out.println(beanFactory == applicationContext.getAutowireCapableBeanFactory());//true
 }

6. Spring 应用上下文

ApplicationContext

ApplicationContext 除了 IoC 容器角色，还有提供：

  • 面向切面（AOP）
  • 配置元信息（Configuration Metadata）
  • 资源管理（Resources）
  • 事件（Events）
  • 国际化（i18n）
  • 注解（Annotations）
  • Environment 抽象（Environment Abstraction）

7. 使用 Spring IoC 容器

dependency-lookup-context.xml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
<bean id="user" class="com.cruise.thinking.in.spring.ioc.container.overview.domain.User">
       <property name="id" value="1"></property>
       <property name="name" value="Cruise"></property>
   </bean>

   <!-- 使用 ObjectFactory 的实现 TargetBeanObjectFactory 实现延迟加载 -->
   <!-- TargetBeanObjectFactory 是 ObjectFactoryCreatingFactoryBean的 内部类-->
   <bean id="objectFactory" class="org.springframework.beans.factory.config.ObjectFactoryCreatingFactoryBean">
       <!-- 配置关联的 beanName -->
       <property name="targetBeanName" value="user"></property>
   </bean>

   <!-- 使用 parent 继承 user的属性 -->
   <bean id="superUser" class="com.cruise.thinking.in.spring.ioc.container.overview.domain.SuperUser"
         parent="user" primary="true">
       <property name="address" value="Beijing"></property>
   </bean>

1、使用xml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

/**
 * 使用BeanFactory就无法使用事件机制、AOP等这些高级特性了
 *
 */
public static void beanFactoryAsIoCContainer(){
    // 创建 BeanFactory 容器
    DefaultListableBeanFactory beanFactory = new DefaultListableBeanFactory();
    XmlBeanDefinitionReader reader = new XmlBeanDefinitionReader(beanFactory);
    // 加载配置
    int count = reader.loadBeanDefinitions("classpath:/META-INF/dependency-lookup-context.xml");
    System.out.println("加载的Bean数量"+count);
    User user = beanFactory.getBean(User.class);
    System.out.println("通过BeanFactory获取Bean："+user);
}

2、使用注解

1
2
3
4
5
6
7
@Bean
  public User user(){
      User user = new User();
      user.setId(2L);
      user.setName("Tom");
      return user;
  }
1
2
3
4
5
6
7
8
9
10
11
// 创建 BeanFactory 容器
    AnnotationConfigApplicationContext applicationContext = new AnnotationConfigApplicationContext();
    // 将当前类 AnnotationApplicationContextAsIoCContainerDemo 作为配置类（Configuration Class）
    applicationContext.register(AnnotationApplicationContextAsIoCContainerDemo.class);
    // 启动应用上下文
    applicationContext.refresh();
    // 依赖查找集合对象
    lookupCollectionByType(applicationContext);

    // 关闭应用上下文
    applicationContext.close();
1
2
3
4
5
6
7
private static void lookupCollectionByType(BeanFactory beanFactory) {
       if (beanFactory instanceof ListableBeanFactory) {
           ListableBeanFactory listableBeanFactory = (ListableBeanFactory) beanFactory;
           Map<String, User> users = listableBeanFactory.getBeansOfType(User.class);
           System.out.println("查找到的所有的 User 集合对象：" + users);
       }
   }

8. Spring IoC 容器生命周期

启动

运行

停止

9. 面试题

什么是 Spring IoC容器？

答：Spring Framework implementation of the Inversion of Control (IoC) principle.

IoC is also known as dependency injection (DI). It is a process whereby objects define their dependencies (that is, the other objects they work with) only through constructor arguments, arguments to a factory method, or properties that are set on the object instance after it is constructed or returned from a factory method. The container then injects those dependencies when it creates the bean

BeanFactory 与 FactoryBean？

答： BeanFactory 是 IoC 底层容器 FactoryBean 是 创建 Bean 的一种方式，帮助实现复杂的初始化逻辑

Spring IoC 容器启动时做了哪些准备？

答：IoC 配置元信息读取和解析、IoC 容器生命周期、Spring 事件发布、 国际化等
