第六章：Spring IoC 注入

依赖注入的模式和类型

模式

手动模式 - 配置或者编程的方式，提前安排注入规则
  • XML 资源配置元信息
  • Java 注解配置元信息
  • API 配置元信息
自动模式 - 实现方提供依赖自动关联的方式，按照內建的注入规则
  • Autowiring（自动绑定）

自动绑定（Autowiring）

自动绑定（Autowiring）模式

自动绑定（Autowiring）限制和不足

依赖注入方式

Setter 方法依赖注入

UserHolder注入User

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
public class UserHolder {

    private User user;

    public UserHolder() {
    }

    public UserHolder(User user) {
        this.user = user;
    }

    public User getUser() {
        return user;
    }

    public void setUser(User user) {
        this.user = user;
    }

    @Override
    public String toString() {
        return "UserHolder{" +
                "user=" + user +
                '}';
    }
}

手动模式

XML 资源配置元信息
1
2
3
4
<!-- xml 手动 Setter 注入 -->
 <bean class="com.cruise.thinking.in.spring.dependency.injection.holder.UserHolder">
     <property name="user" ref="superUser"/>
 </bean>
Java 注解配置元信息
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
public class AnnotationDependencySetterInjectionDemo {

    public static void main(String[] args) {
        AnnotationConfigApplicationContext context = new AnnotationConfigApplicationContext();

        context.register(AnnotationDependencySetterInjectionDemo.class);

        // 使用注解的方式启动Spring上下文也可以使用 Xml的特性
        XmlBeanDefinitionReader reader = new XmlBeanDefinitionReader(context);
        // 解析Xml,注册User
        reader.loadBeanDefinitions("classpath:/META-INF/dependency-lookup-context.xml");

        context.refresh();

        UserHolder userHolder = context.getBean(UserHolder.class);

        System.out.println(userHolder);

        context.close();

    }

    // 注入User到UserHolder
    @Bean
    public UserHolder userHolder(User user) {
        UserHolder userHolder = new UserHolder();
        userHolder.setUser(user);
        return userHolder;
    }
}
API 配置元信息

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
   public static void main(String[] args) {

       AnnotationConfigApplicationContext context = new AnnotationConfigApplicationContext();

       // 注册 UserHolder的 BeanDefinition
       context.registerBeanDefinition("userHolder", createBeanDefinition());

       // 使用注解的方式启动Spring上下文也可以使用 Xml的特性
       XmlBeanDefinitionReader reader = new XmlBeanDefinitionReader(context);
       reader.loadBeanDefinitions("classpath:/META-INF/dependency-lookup-context.xml");

       context.refresh();

       UserHolder userHolder = context.getBean(UserHolder.class);

       System.out.println(userHolder);

       context.close();

   }

// 使用javaAPI setter
   private static BeanDefinition createBeanDefinition() {
       BeanDefinitionBuilder beanDefinitionBuilder = BeanDefinitionBuilder.genericBeanDefinition(UserHolder.class);
       // Setter 注入是没有顺序的
       beanDefinitionBuilder.addPropertyReference("user", "superUser");

       return beanDefinitionBuilder.getBeanDefinition();
   }

自动模式

byName

当SpringIOC中存在user名称的对象时，setter注入

1
<bean class="com.cruise.thinking.in.spring.dependency.injection.holder.UserHolder" autowire="byName"/>
byType

​ 将上面的byName改成byType即可

构造器依赖注入

手动模式

XML 资源配置元信息
1
2
3
4
5
6
<!-- xml 手动 constructor 注入 -->
<bean class="com.cruise.thinking.in.spring.dependency.injection.holder.UserHolder">
    <!-- 使用name或者index都可以 -->
   <!--<constructor-arg name="user" ref="superUser"/>-->
    <constructor-arg index="0" ref="superUser"/>
</bean>
Java 注解配置元信息
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
public class AnnotationDependencyConstructorInjectionDemo {

    public static void main(String[] args) {
        AnnotationConfigApplicationContext context = new AnnotationConfigApplicationContext();

        context.register(AnnotationDependencyConstructorInjectionDemo.class);

        // 使用注解的方式启动Spring上下文也可以使用 Xml的特性
        XmlBeanDefinitionReader reader = new XmlBeanDefinitionReader(context);
        reader.loadBeanDefinitions("classpath:/META-INF/dependency-lookup-context.xml");

        context.refresh();

        UserHolder userHolder = context.getBean(UserHolder.class);

        System.out.println(userHolder);

        context.close();

    }

    @Bean
    public UserHolder userHolder(User user) {
        return new UserHolder(user);
    }
}
API 配置元信息
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
public class ApiDependencyConstructorInjectionDemo {

    public static void main(String[] args) {

        AnnotationConfigApplicationContext context = new AnnotationConfigApplicationContext();

        // 注册 UserHolder的 BeanDefinition
        context.registerBeanDefinition("userHolder", createBeanDefinition());

        // 使用注解的方式启动Spring上下文也可以使用 Xml的特性
        XmlBeanDefinitionReader reader = new XmlBeanDefinitionReader(context);
        reader.loadBeanDefinitions("classpath:/META-INF/dependency-lookup-context.xml");

        context.refresh();

        UserHolder userHolder = context.getBean(UserHolder.class);

        System.out.println(userHolder);

        context.close();

    }

    private static BeanDefinition createBeanDefinition() {
        BeanDefinitionBuilder beanDefinitionBuilder = BeanDefinitionBuilder.genericBeanDefinition(UserHolder.class);

        // 构造器参数是有顺序的
        beanDefinitionBuilder.addConstructorArgReference("superUser");

        return beanDefinitionBuilder.getBeanDefinition();
    }
}

自动模式

constructor
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
public class AutowiringDependencyConstructorInjectionDemo {

    public static void main(String[] args) {

        DefaultListableBeanFactory beanFactory = new DefaultListableBeanFactory();

        XmlBeanDefinitionReader reader = new XmlBeanDefinitionReader(beanFactory);

        reader.loadBeanDefinitions("classpath:/META-INF/autowiring-dependency-injection-constructor.xml");

        UserHolder bean = beanFactory.getBean(UserHolder.class);

        System.out.println(bean);

    }
}
1
2
3
4
5
6
7
8
9
10
11
12
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
        https://www.springframework.org/schema/beans/spring-beans.xsd">

    <import resource="classpath:/META-INF/dependency-lookup-context.xml"/>

    <!-- 基于 xml 自动 constructor 注入 -->
    <bean class="com.cruise.thinking.in.spring.dependency.injection.holder.UserHolder" autowire="constructor"/>

</beans>

字段注入

手动模式

Java 注解配置元信息
@Autowired

会自动忽略static属性

@Resource
@Inject（可选）
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
public class AnnotationDependencyFieldInjectionDemo {

    @Autowired
    private UserHolder userHolder;

    @Resource
    private UserHolder userHolder2;

    @Inject
    private UserHolder userHolder3;

    /**
     * 会自动忽略static属性
     */
    @Autowired
    private static UserHolder userHolder4;

    public static void main(String[] args) {
        AnnotationConfigApplicationContext context = new AnnotationConfigApplicationContext();

        context.register(AnnotationDependencyFieldInjectionDemo.class);

        // 使用注解的方式启动Spring上下文也可以使用 Xml的特性
        XmlBeanDefinitionReader reader = new XmlBeanDefinitionReader(context);
        reader.loadBeanDefinitions("classpath:/META-INF/dependency-lookup-context.xml");

        context.refresh();

        AnnotationDependencyFieldInjectionDemo bean = context.getBean(AnnotationDependencyFieldInjectionDemo.class);

        System.out.println(bean.userHolder);
        System.out.println(bean.userHolder2);
        System.out.println(bean.userHolder3);
        System.out.println(bean.userHolder4); // null
        System.out.println(bean.userHolder == bean.userHolder2); // true
        System.out.println(bean.userHolder == bean.userHolder3); // true

        context.close();
    }

    @Bean
    public UserHolder userHolder(User user) {
        // 构造器注入属性
        return new UserHolder(user);
    }
}

方法注入

手动模式

Java 注解配置元信息
@Autowired
@Resource
@Inject（可选）
@Bean
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
public class AnnotationDependencyMethodInjectionDemo {

    private UserHolder userHolder;
    private UserHolder userHolder2;
    private UserHolder userHolder3;

    /**
     * {@link Autowired} 使用在方法上，方法名是任意的,只需要 Spring 容器中存在 参数类型的 Bean
     *
     * @param userHolder
     */
    @Autowired
    public void init(UserHolder userHolder) {
        this.userHolder = userHolder;
    }

    /**
     * {@link Resource} 使用在方法上，方法名是任意的
     *
     * @param userHolder2
     */
    @Resource
    public void init2(UserHolder userHolder2) {
        this.userHolder2 = userHolder2;
    }

    /**
     * {@link Inject} 使用在方法上，方法名是任意的
     *
     * @param userHolder3
     */
    @Inject
    public void init3(UserHolder userHolder3) {
        this.userHolder3 = userHolder3;
    }

    /**
     * 注册Bean
     * @param user
     * @return
     */
    @Bean
    public UserHolder userHolder(User user) {
        // 构造器注入属性
        return new UserHolder(user);
    }

    public static void main(String[] args) {
        AnnotationConfigApplicationContext context = new AnnotationConfigApplicationContext();

        context.register(AnnotationDependencyMethodInjectionDemo.class);

        // 使用注解的方式启动Spring上下文也可以使用 Xml的特性
        XmlBeanDefinitionReader reader = new XmlBeanDefinitionReader(context);
        reader.loadBeanDefinitions("classpath:/META-INF/dependency-lookup-context.xml");

        context.refresh();

        AnnotationDependencyMethodInjectionDemo bean = context.getBean(AnnotationDependencyMethodInjectionDemo.class);

        System.out.println(bean.userHolder);
        System.out.println(bean.userHolder2);
        System.out.println(bean.userHolder3);
        System.out.println(bean.userHolder == bean.userHolder2);
        System.out.println(bean.userHolder == bean.userHolder3);

        context.close();
    }

}

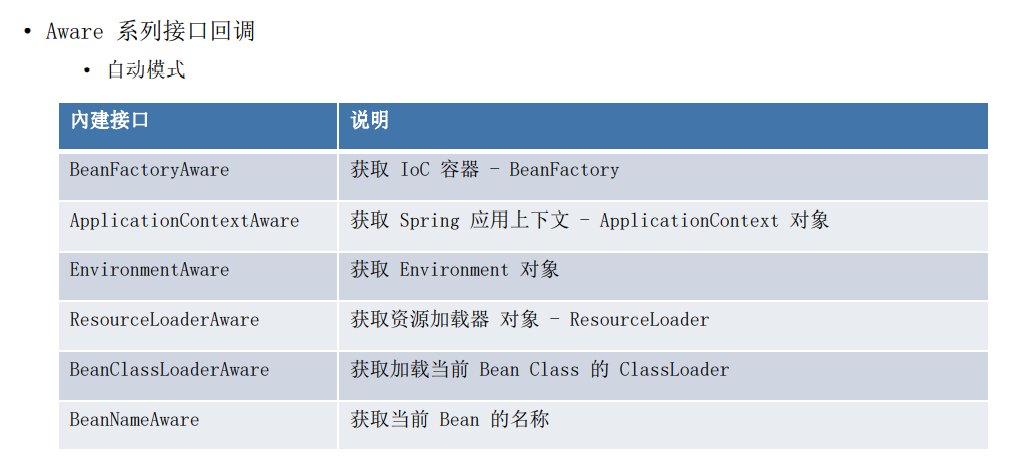

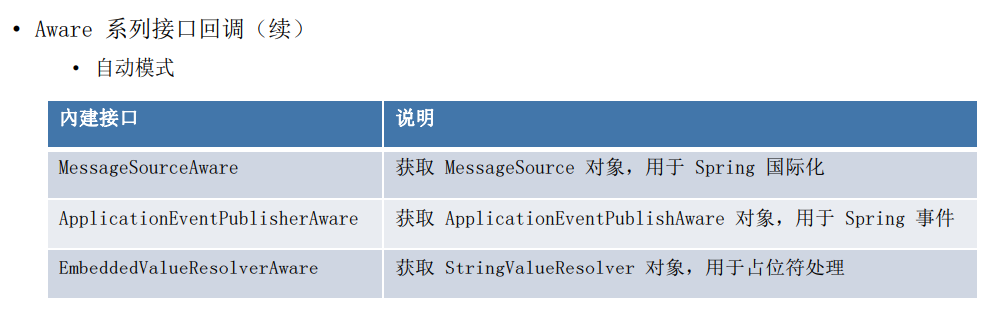

回调注入（Aware接口）

image-20211220231138030

image-20211220231150517

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
public class AwareInterfaceDependencyInjectionDemo implements BeanFactoryAware, ApplicationContextAware {

    private BeanFactory beanFactory;

    private ApplicationContext applicationContext;


    public static void main(String[] args) {
        AnnotationConfigApplicationContext context =
                new AnnotationConfigApplicationContext(AwareInterfaceDependencyInjectionDemo.class);

        AwareInterfaceDependencyInjectionDemo bean = context.getBean(AwareInterfaceDependencyInjectionDemo.class);

        System.out.println(bean.applicationContext == context);// true
        System.out.println(bean.beanFactory == context.getBeanFactory());// true

        context.close();
    }

    @Override
    public void setBeanFactory(BeanFactory beanFactory) throws BeansException {
        this.beanFactory = beanFactory;
    }

    @Override
    public void setApplicationContext(ApplicationContext applicationContext) throws BeansException {
        this.applicationContext = applicationContext;
    }
}

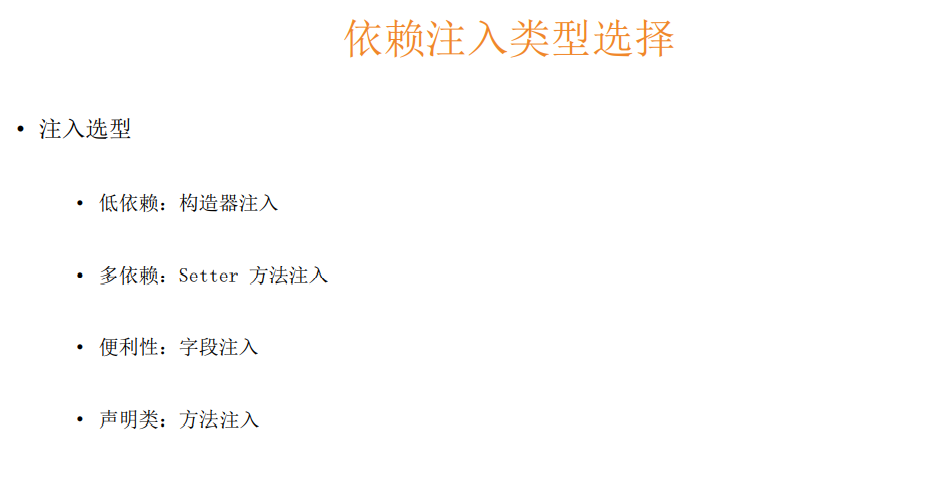

依赖注入类型选择

image-20211220231700978

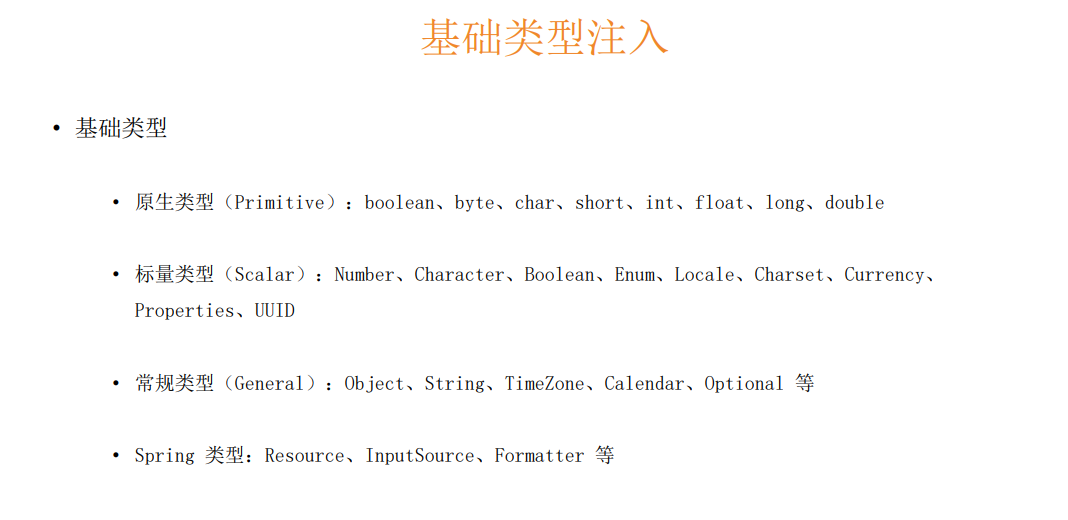

基础类型注入

image-20211220231715367

CityHolder, 需要注入Object , Resource、Optional

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
public class CityHolder {

    private City city;

    private Resource cityResource;

    private Optional<String> desc;

    public City getCity() {
        return city;
    }

    public void setCity(City city) {
        this.city = city;
    }

    public Resource getCityResource() {
        return cityResource;
    }

    public void setCityResource(Resource cityResource) {
        this.cityResource = cityResource;
    }

    public Optional<String> getDesc() {
        return desc;
    }

    public void setDesc(Optional<String> desc) {
        this.desc = desc;
    }

    @Override
    public String toString() {
        return "CityHolder{" +
                "city=" + city +
                ", cityResource=" + cityResource +
                ", desc=" + desc +
                '}';
    }
}

Xml的配置信息:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
<!-- 基础类型注入 -->
<bean id="cityHolder" class="com.cruise.thinking.in.spring.dependency.injection.holder.CityHolder">
    <!-- 注入 enum 类型 输入的是字符串 输出的是 enum -->
    <property name="city" value="BEIJING"/>
    <!-- 注入 Spring 类型 输入的是字符串 输出的是 Resource -->
    <property name="cityResource" value="classpath:/META-INF/city.properties"/>
    <!-- 注入 Optional 类型  -->
    <property name="desc" ref="optional"/>
</bean>

<bean id="optional" class="java.util.Optional">
    <constructor-arg name="value" value="北京"/>
</bean>

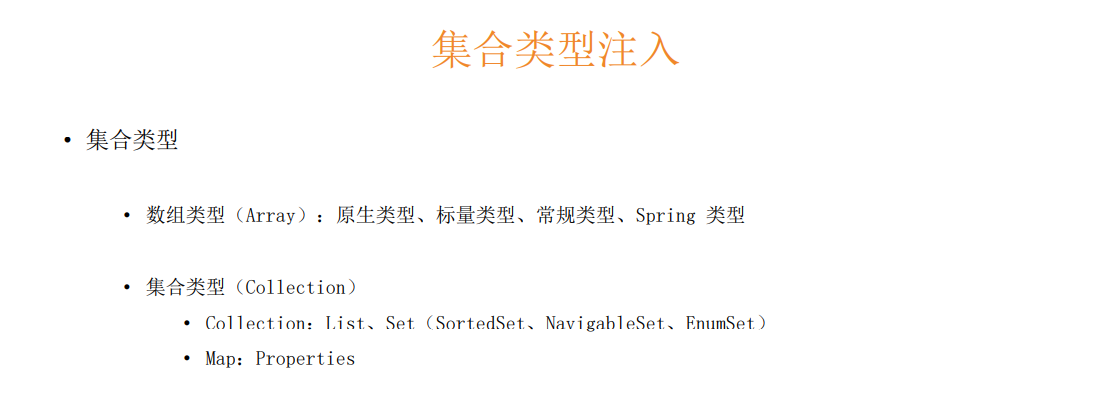

集合类型注入

image-20211220231724377

集合类型注入：数组，集合

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
public class MultiCityHolder {

    private City[] cities;

    private List<City> cityList;

    public City[] getCities() {
        return cities;
    }

    public void setCities(City[] cities) {
        this.cities = cities;
    }

    public List<City> getCityList() {
        return cityList;
    }

    public void setCityList(List<City> cityList) {
        this.cityList = cityList;
    }

    @Override
    public String toString() {
        return "MultiCityHolder{" +
                "cities=" + Arrays.toString(cities) +
                ", cityList=" + cityList +
                '}';
    }
}
1
2
3
4
5
6
7
8
9
10
11
12
<!-- 集合类型注入 -->
<bean id="multiCityHolder" class="com.cruise.thinking.in.spring.dependency.injection.holder.MultiCityHolder">
    <property name="cities" value="BEIJING,HANGZHOU"/>
    <!-- 二选一 -->
    <!--<property name="cityList" value="BEIJING,SHANGHAI"/>-->
    <property name="cityList">
        <list>
            <value>BEIJING</value>
            <value>SHANGHAI</value>
        </list>
    </property>
</bean>

限定注入

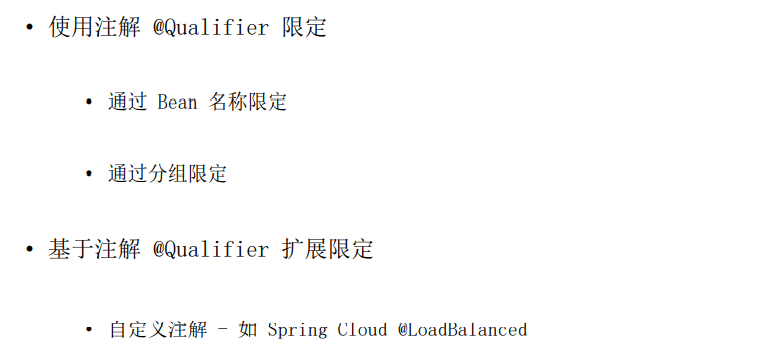

image-20211226105214987

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
public class QualifierDependencyInjectionDemo {

    /**
     * 注入 User 类型的 Bean ，如果存在多个则注入 Primary 的 Bean
     *
     */
    @Autowired
    private User user;

    /**
     * 注入 User 类型的 且 beanName是 user的
     *
     */
    @Autowired
    @Qualifier("user")
    private User namedUser;

    @Autowired
    private List<User> allUsers;

    @Autowired
    @Qualifier
    private List<User> qualifierUsers;

    @Autowired
    @UserGroup
    private List<User> groupUsers;

    @Bean
    public User user() {
        User user = new User();
        user.setId(1L);
        return user;
    }

    @Bean
    @Primary
    public SuperUser superUser() {
        SuperUser superUser = new SuperUser();
        superUser.setId(2L);
        return superUser;
    }

    @Bean
    @Qualifier // 进行分组
    public User user1() {
        User user = new User();
        user.setId(3L);
        return user;
    }

    @Bean
    @Qualifier // 进行分组
    public User user2() {
        User user = new User();
        user.setId(4L);
        return user;
    }

    @Bean
    @UserGroup
    public User user3() {
        User user = new User();
        user.setId(5L);
        return user;
    }

    @Bean
    @UserGroup
    public User user4() {
        User user = new User();
        user.setId(6L);
        return user;
    }

    public static void main(String[] args) {
        AnnotationConfigApplicationContext context =
                new AnnotationConfigApplicationContext(QualifierDependencyInjectionDemo.class);

        QualifierDependencyInjectionDemo bean = context.getBean(QualifierDependencyInjectionDemo.class);

        // 输出 Primary 的 User
        System.out.println("bean.user" + bean.user);
        // 输出 限定了名称的 User
        System.out.println("bean.namedUser" + bean.namedUser);
        // 输出 全部 User,包含使用 @Qualifier 和 @UserGroup 注册的 Bean
        System.out.println("bean.allUsers" + bean.allUsers);
        // 输出 通过 @Qualifier 分组的 User，仅包含使用 @Qualifier 和 @UserGroup 注册的 Bean
        System.out.println("bean.qualifierUsers" + bean.qualifierUsers);
        // 输出 通过 @UserGroup 扩展的 User，仅包含使用 @UserGroup 注册的 Bean
        System.out.println("bean.groupUsers" + bean.groupUsers);
        context.close();
    }
}
1
2
3
4
5
bean.usersuperUser{address='null'} User{id=2, name='null'}
bean.namedUserUser{id=1, name='null'}
bean.allUsers[User{id=1, name='null'}, superUser{address='null'} User{id=2, name='null'}, User{id=3, name='null'}, User{id=4, name='null'}, User{id=5, name='null'}, User{id=6, name='null'}]
bean.qualifierUsers[User{id=3, name='null'}, User{id=4, name='null'}, User{id=5, name='null'}, User{id=6, name='null'}]
bean.groupUsers[User{id=5, name='null'}, User{id=6, name='null'}]

UserGroup 上面有@Qualifier注解

1
2
3
4
5
6
7
8
@Target({ElementType.FIELD, ElementType.METHOD, ElementType.PARAMETER, ElementType.TYPE, ElementType.ANNOTATION_TYPE})
@Retention(RetentionPolicy.RUNTIME)
@Inherited
@Documented
@Qualifier
public @interface UserGroup {
}

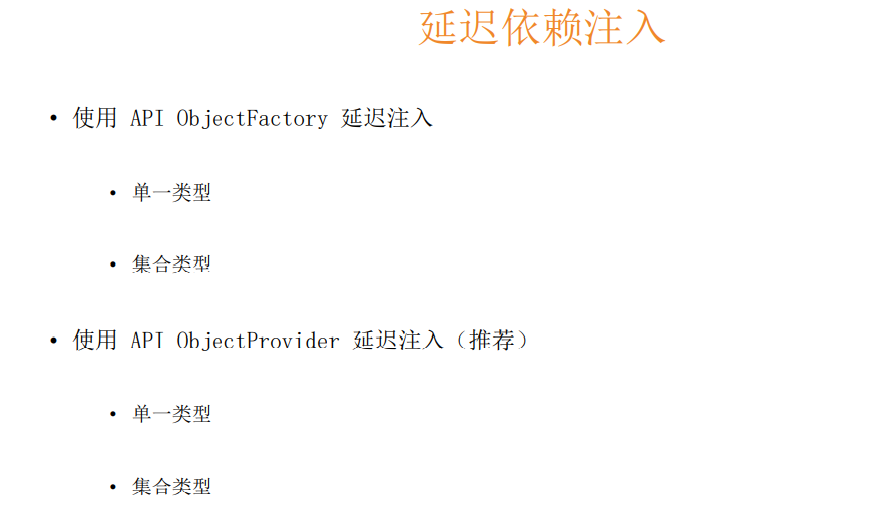

延迟依赖注入

image-20211226113618284

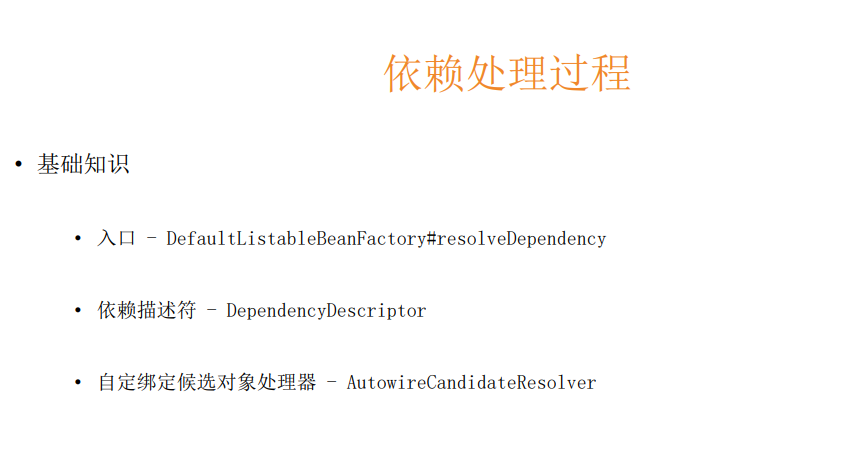

依赖处理过程

image-20211226113804903

@Autowired 注入原理

JSR-330 @Inject 注入原理

Java通用注解注入原理

自定义依赖注入注解

面试题精选
